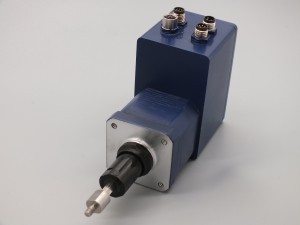

Smart integrated linear servo motor-Nema42-IP65 CANopen Integrated Brushless Servo Motor
Integrated linear servo motor integrates linear servo motor and controller, supports CANopen Modbus RTU pulse control, etc. The integrated motor does not need coupling and saves space and installation. The integrated motor has its own input and output points. Support analog input and digital input.
Features
- Integrated compact structure
- IP65 protection
- Screw motor, driver, motion controller, input and output are all in one
- Incremental encoder and multi turn absolute encoder are optional
- Via CANopen control
- The stroke and lead can be selected flexibly
- G0805 ball screw
- No coupling is required
Specifications
| Size(mm): | 42 mm |
| Rated Speed (RPM): | 1000rpm |
| Torque (Nm): | 0.25-0.5 Nm |
| Interface: | Canopen Modbus RTU |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 5 digital inputs and outputs |
| Optional Gearbox: | No |
| IP Protection: | IP67 |
| Customization: | The stroke and lead can be selected flexibly |
