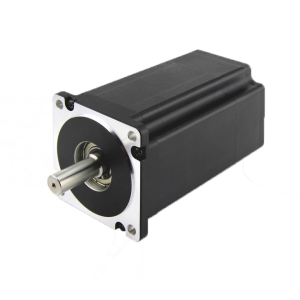

Integrated stepper motor-PD6-C-M CANopen Integrated Brushless Servo Motor
Smart stepper motor with integrated controller and encoder. Space-saving all-in-one servo system that simplifies installation. Flange size: 86 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen or USB
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- High precision and smooth running
Specifications
| Size(mm): | 86 mm |
| Rated Speed (RPM): | 200rpm |
| Torque (Nm): | 5.94 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 6 digital inputs (5/24V switchable) 2 analog inputs (0-10V switchable) 2 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP54 |
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PD6-C8918M9504-E-09 Data Sheet | 133.171KB | December / 26 / 2019 | Download | |
| PD6-C8918M9504-E-09 3D Model | stp | 8.439MB | December / 26 / 2019 | Download |
| Product_Overview_PD6-C | 394.812KB | December / 27 / 2019 | Download |
