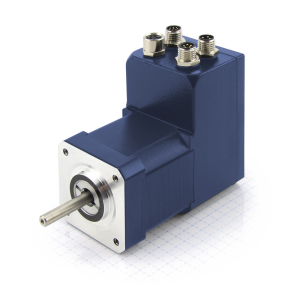

Integrated stepper motor-PD2-C-IP-08 class IP65 CANopen Integrated Brushless Servo Motor
Smart stepper motor with integrated controller and encoder and protection class IP65. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- High precision and smooth running
Specifications
| Size(mm): | 42 mm |
| Rated Speed (RPM): | 600rpm |
| Torque (Nm): | 0.5 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 4 digital inputs (5/24V switchable) 1 analog inputs (0-20mA/0-10V switchable) 2 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP67 |
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PD2-C411L18-E-65-08 Data Sheet | 115.145KB | December / 24 / 2019 | Download | |
| PD2-C411L18-E-65-08 3D Model | stp | 1.463MB | December / 24 / 2019 | Download |
| PD2C-IP_CANopen_Technical-Manual_V1.0.1 | 3.334MB | December / 27 / 2019 | Download | |
| Product_Overview_PD2-C-IP | 323.954KB | December / 27 / 2019 | Download |
