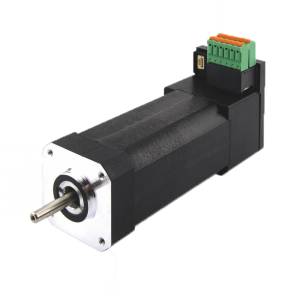

brushless DC motor with integrated controller PD2-CB42M-08 CANopen Smart Stepper Motor
Smart BLDC motor with integrated controller and encoder. Ideally suited for highly dynamic applications with space constrictions, such as in laboratory automation. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- Long service life
Specifications
| Size(mm): | 42 mm |
| Rated Speed (RPM): | 4000rpm |
| Torque (Nm): | 0.125 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 4 digital inputs (5/24V switchable) 1 analog inputs (0-20 mA/0-10 V switchable) 3 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP54 |
Dimensions
