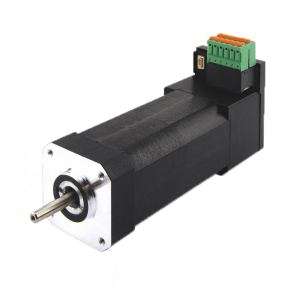

brushless DC motor with integrated controller PD2-CB42C-08 CANopen Smart Stepper Motor
Smart BLDC motor with integrated controller and encoder. Ideally suited for highly dynamic applications with space constrictions, such as in laboratory automation. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm.
Features
- Controlled by fieldbus , clock & direction or analog/digital inputs
- Easy to parameterize via CANopen
- Simple programming with the Plug & Drive Studio
- Closed loop with singleturn absolute encoder
- Long service life
Specifications
| Size(mm): | 42 mm |
| Rated Speed (RPM): | 4000rpm |
| Torque (Nm): | 0.25 Nm |
| Interface: | Canopen |
| OEM Programmable: | Yes |
| Inputs & Outputs: | 4 digital inputs (5/24V switchable) 1 analog inputs (0-20 mA/0-10 V switchable) 3 digital outputs (max 24 V/100 mA)
|
| Optional Gearbox: | Yes |
| IP Protection: | IP54 |
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PD2-CB42C048040-E-08 Data Sheet | 122.023KB | December / 24 / 2019 | Download | |
| PD2-CB42C048040-E-08 3D Model | stp | 4.096MB | December / 24 / 2019 | Download |
| PD2C_CANopen_Technical-Manual_V2.0.1 | 3.675MB | December / 27 / 2019 | Download | |
| Product_Overview_PD2-CB | 479.436KB | December / 27 / 2019 | Download |
