Nema23/Nema34 micro motor driver-PMD006P6 Programmable Stepper Motor Driver
PMD006P6 is a compact stepper motor open-loop controller that supports 0-6A output. The maximum subdivision can reach 16 microstep. Supports common cathode, common anode, and differential signal control. Wide range of applications. Economical.It can be directly mounted on the rear of 57(Nema23) and 86(Nema34) motors through mounting flanges
Features
- Miniature Small size，42*42mm
- common cathode, common anode, and differential signal
- 0-6A current
- Can be directly mounted on the rear of 57(Nema23) and 86(Nema34) motors
- Economical
Specifications
| Rated current (Arms): | 6 A |
| Operating Voltage V: | 12-48 V |
| Interface: | Pulse |
| Inputs & Outputs: | Pulse and direction, enable |
| OEM Programmable: | No |
| Customization: | Firmware |
| Corresponding Motors: | Stepper motor |

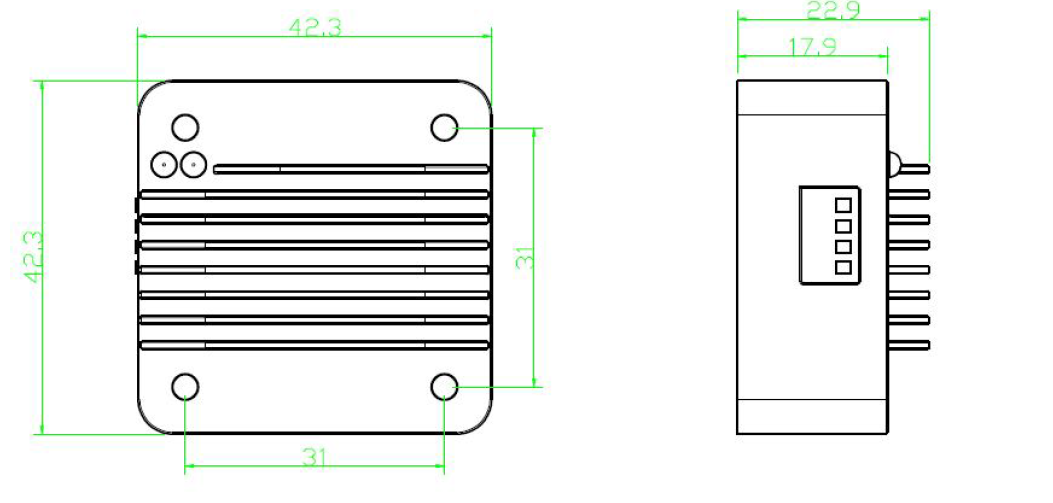

Dimension

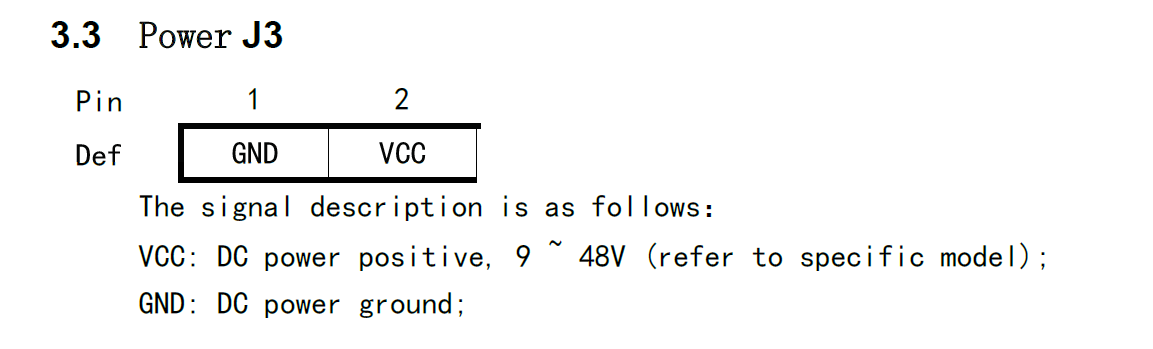

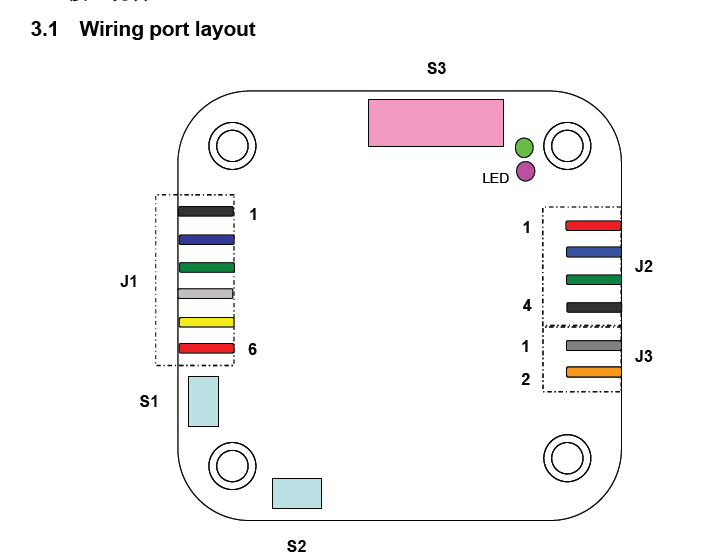

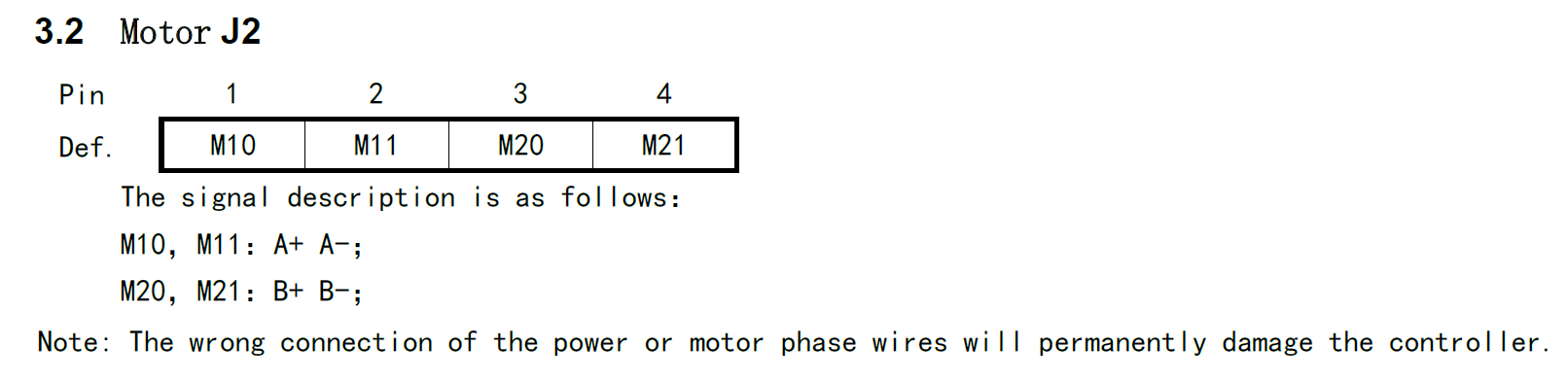

Signal assignment

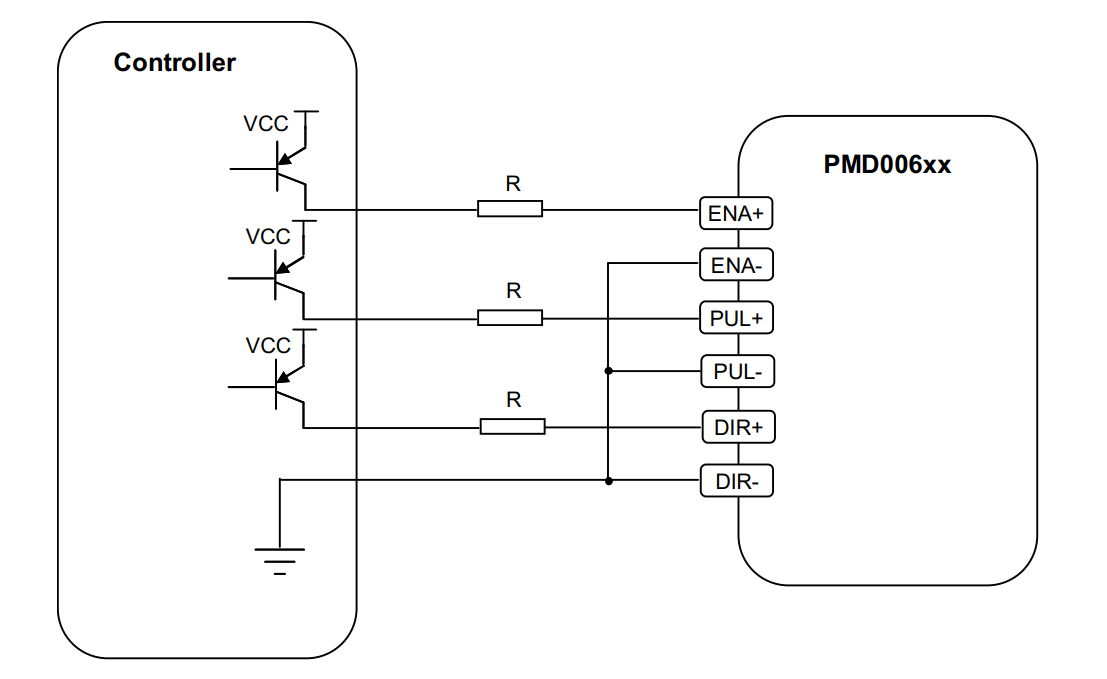

Host connec-Common cathode
Host connec-Common anode

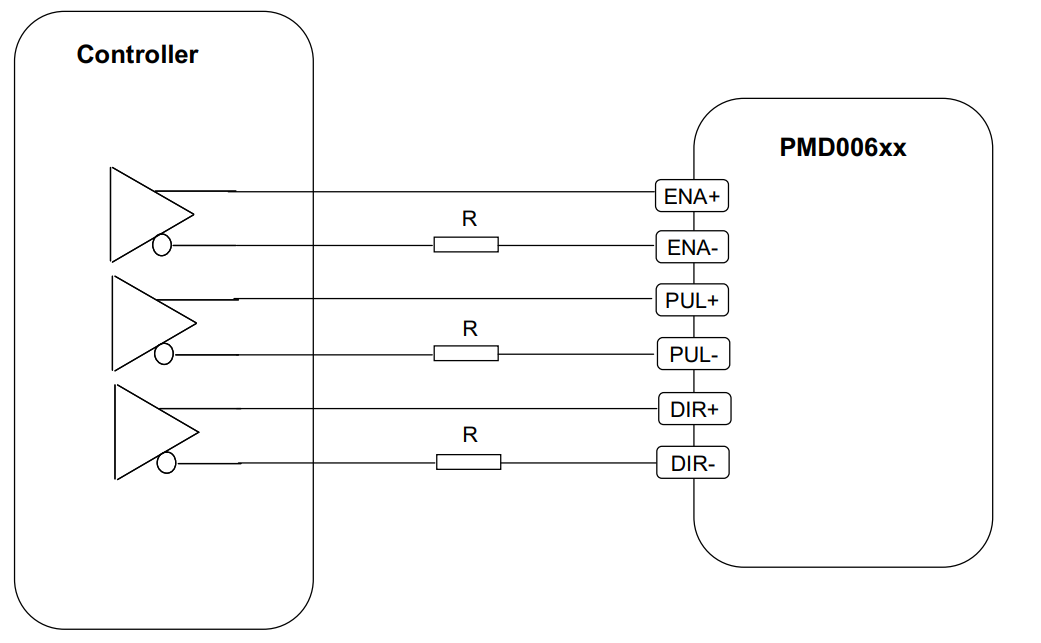

Host connec-Differential signal
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| PMD006_USER_MANUAL_V0.1.5.pdf | 1.759MB | January / 23 / 2020 | Download | |
| Product Overview PMD006 | 875.188KB | January / 23 / 2020 | Download | |
| Motor Controllers Drives Catalog | 12.145MB | December / 19 / 2019 | Download |
