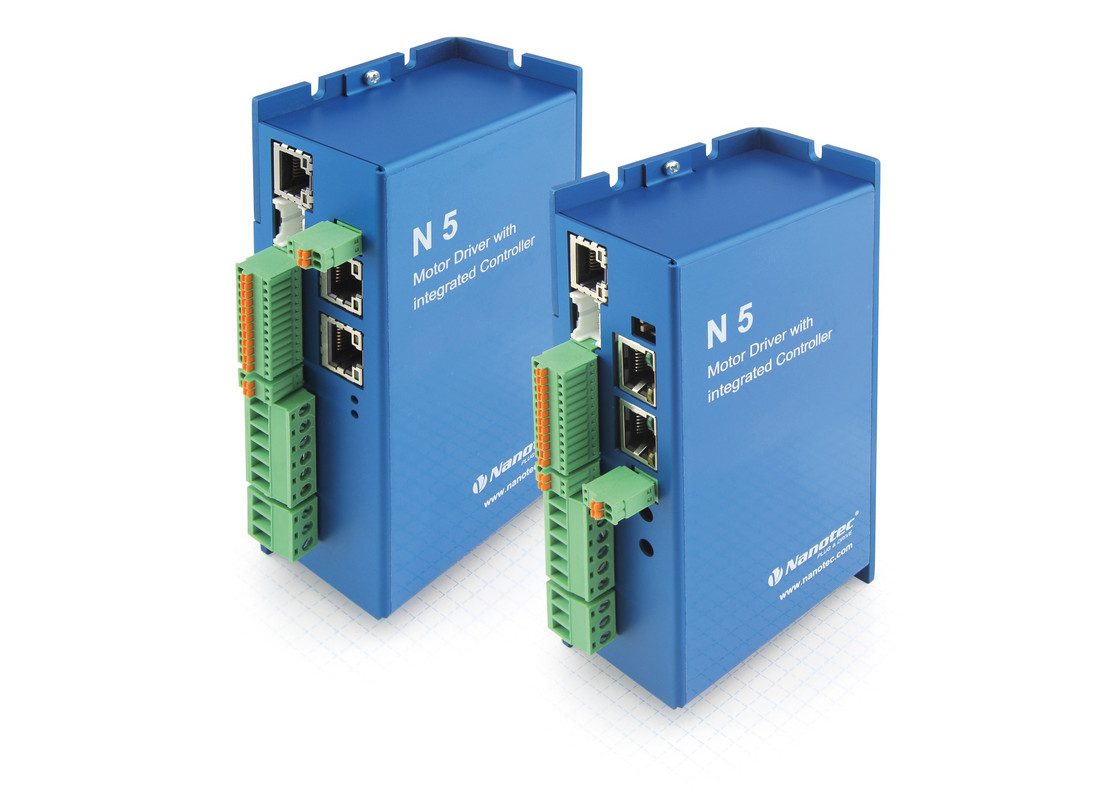

Motor Controller / Driver-N5-2-4 Modbus-TCP Servo Motor Controller
Modbus TCP controller can be easily connected to Siemens PLC. The controller is suitable for stepping motor and servo motor; the controller integrates external encoder input interface.The N5-2-4 controller can provide continuous current output up to 18A and peak current output up to 40A. Suitable for stepper motor and servo servo motor.
Features
- compact size，0-18A rated output /40A peek
- Control via USB, CANopen, Modbus RTU,Modbus TCP
- High Precision Positioning, Speed and Torque Control
- Enriching Input and Output Modules
- Universal Servo controller
- Nanoj user logic program download
- Run alone via I/O control
Specifications
| Rated current (Arms): | 0-18 A |
| Operating Voltage V: | 12-58 V |
| Interface: | Modbus TCP |
| Inputs & Outputs: | 6 Digital inputs (5/24 V switchable ) |
| OEM Programmable: | Yes |
| Customization: | OEM logic program |
| Corresponding Motors: | stepper and DC servo motor |
Dimension
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| N5 Modbus TCP 3D Modle | stp | 4.353MB | January / 21 / 2020 | Download |
| N5-x-4_ModbusTCP_Technical-Manual | 5.028MB | January / 21 / 2020 | Download | |
| Motor Controllers Drives Catalog | 12.145MB | December / 19 / 2019 | Download | |
| PNDS-2.0.5-release-package | zip | 323.863MB | December / 19 / 2019 | Download |
