Stepper & Servo Driver C5-E-81 Modbus-TCP Servo Motor Controller
The C5-E controller can provide continuous current output up to 10A and peak current output up to 30A. Suitable for stepper motor and servo servo motor.Modbus TCP controller can be easily connected to Siemens PLC. The controller is suitable for stepping motor and servo motor; the controller integrates external encoder input interface.
Features
- compact size，0-10A rated output /30A peek
- Control via USB, CANopen, Modbus RTU,Modbus TCP
- High Precision Positioning, Speed and Torque Control
- Enriching Input and Output Modules
- Universal Servo controller
- Nanoj user logic program download
- Run alone via I/O control
Specifications
| Rated current (Arms): | 0-10 A |
| Operating Voltage V: | 12-48 V |
| Interface: | Modbus TCP |
| Inputs & Outputs: | 5 Digital inputs (5/24 V switchable ) |
| OEM Programmable: | Yes |
| Customization: | OEM logic program |
| Corresponding Motors: | stepper and DC servo motor |

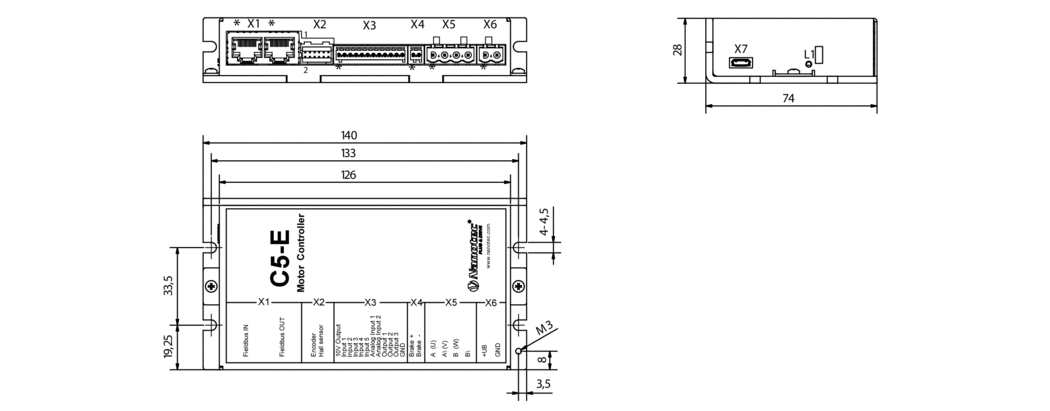

Dimension
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| C5E_ModbusTCP_USB_Technical-Manual V1.1.0 | 3.6MB | January / 21 / 2020 | Download | |
| C5-E-x-81 3D Modle | stp | 6.906MB | January / 21 / 2020 | Download |
| Motor Controllers Drives Catalog | 12.145MB | December / 19 / 2019 | Download | |
| PNDS-2.0.5-release-package | zip | 323.863MB | December / 19 / 2019 | Download |
