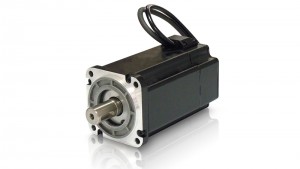

EC4050 50W Servo-copy 40mm High Performance DC Servo Motor
High power density DC servo motor, flange size 40mm, height 47mm. The rated power can reach 50W. Built-in ABZ three-channel differential signal 4000 CPR high-resolution encoder. Particularly suitable for servo positioning applications with a compact structure.
Features
- Very compact
- High-resolution servo
- Flange 40mm
- Rated power 50W
Specifications
| Rated Output P (W): | 50 W |
| Rated Torque T (Nm): | 0.16 Nm |
| Flange (mm): | 40 mm |
| No-load speed (rpm): | 3000 rpm |
| Motor type: | Permanent Magnet Synchronous Servo Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Customization: | Shaft |
| Controllers / Drives Optional: |
Technical Data
Dimensions
