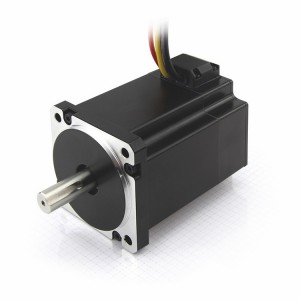

DB80S048030 DC Brushless Motors-Nema34
BLDC motor with 80 x 80 mm flange, 8 poles and very high power density in relation to its size. With a rated speed of 3000 rpm and a rated voltage of 48 V, particularly suited for applications requiring high efficiency. Available with Hall sensors or with Hall sensors and integrated encoder. For higher torques high-performance planetary gearboxes can be mounted. Customized versions with other windings or shaft forms are also available. Available in two versions with four different lengths each.
Features
- High speed
- Longer life and higher accuracy
- Different lengths available
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 283 W |
| Rated Torque T (Nm): | 0.9 Nm |
| Flange (mm): | 80 mm |
| No-load speed (rpm): | 3000 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
C5-E - Motor controller for CANopen,EtherCAT,EtherNet/IP, Modbus RTU/TCP or USB
|
Technical Data
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| DB80S 3D Model | stp | 1.289MB | March / 10 / 2020 | Download |
| DB80S048030-A Data Sheet | 100.896KB | March / 10 / 2020 | Download |
