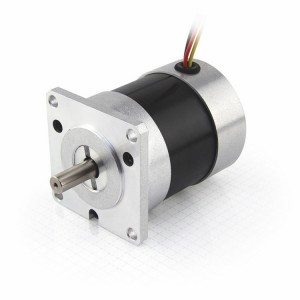

DB59S024035-A DC Brushless Motors-Nema23
Brushless DC motor with high efficiency and quiet running properties; available in two designs. With a power output of 84 W to 220 W (depending on the version), the DB59 is one of the most powerful BLDC motors of this size. For higher torques and a wider performance range Nanotec offers planetary gearboxes with an identical construction. Four lengths are available for each design.
Via the online configurator this motor can also be ordered with magnetic encoder or brake.
The following variants are available in round or angular design:
Motor with one shaft end and Hall sensors (DB59 …-A)
Motor with two shaft ends and encoder (DB59 …-B)
Motor with two shaft ends, encoder and brake (DB59 …-B3).
Features
- High speed
- Longer life and higher accuracy
- Different lengths available
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 84 W |
| Rated Torque T (Nm): | 0.23 Nm |
| Flange (mm): | 56 mm |
| No-load speed (rpm): | 3500 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL4-E - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| DB59S024035-A Data Sheet | 103.106KB | March / 10 / 2020 | Download | |
| DB59S024035-A 3D Model | stp | 128.076KB | March / 10 / 2020 | Download |
