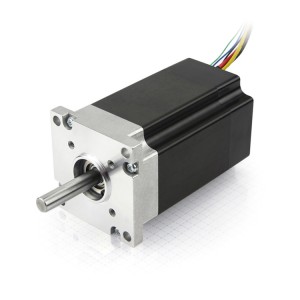

DB56L036030-A DC Brushless Motors-Nema23
Economical BLDC motor with integrated Hall sensors in size NEMA 23 (56 mm). Output shaft with flattening, therefore ideal for applications with positive power transmission. Available in three lengths.
Features
- High speed
- Longer life and higher accuracy
- Different lengths available
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 94 W |
| Rated Torque T (Nm): | 0.3 Nm |
| Flange (mm): | 56 mm |
| No-load speed (rpm): | 3000 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL4-E - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| DB56L036030-A Data Sheet | 109.99KB | March / 10 / 2020 | Download | |
| DB56L036030-A 3D Model | stp | 647.519KB | March / 10 / 2020 | Download |
