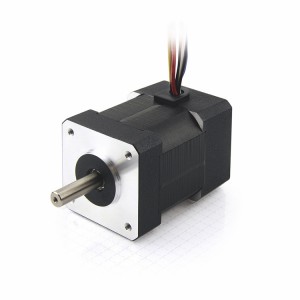

DB43L024030-A DC Brushless Motors-Nema17
High-performance BLDC motor with 6 poles and sintered magnets, hence approx. 30% more power than the DB42 motor with the same length. With Hall sensors or with magnetic encoder and safety brake. Available in various lengths and versions.
If you wish to mount a brake or brake and encoder, please contact our sales department.
Features
- High speed
- Longer life and higher accuracy
- Different lengths available
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 94 W |
| Rated Torque T (Nm): | 0.3 Nm |
| Flange (mm): | 42 mm |
| No-load speed (rpm): | 3000 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL4-E - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| DB43L 3D Model | stp | 239.896KB | March / 10 / 2020 | Download |
| DB43L024030-A Data Sheet | 91.915KB | March / 10 / 2020 | Download |
