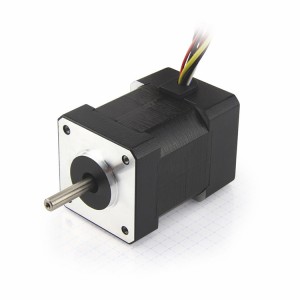

DB42S03 DC Brushless Motors-Nema17
BLDC motor with quiet running characteristics, high acceleration rates, a long service life and speeds of up to 14,000 rpm. By mounting a Nanotec encoder, this motor can be expanded into a high-performance servo motor for high speed ranges. For higher torques and a wider performance range Nanotec offers matching planetary gearboxes. Available in various lengths and versions.
Features
- High speed
- Longer life and higher accuracy
- Different lengths available
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 42 W |
| Rated Torque T (Nm): | 0.0625 Nm |
| Flange (mm): | 42 mm |
| No-load speed (rpm): | 4000 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL3-E - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| DB42S03 Data Sheet | 87.339KB | March / 10 / 2020 | Download | |
| DB42S 3D Model | stp | 432.723KB | March / 09 / 2020 | Download |
