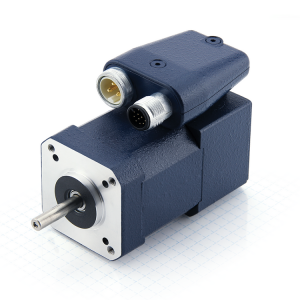

ASB42C048060-ENM DC Brushless Motors-Nema34
NEMA 17 BLDC motor (42 mm) with protection class IP65 (except shaft output). With M16 and M12 connectors for power and rotary encoder. For higher torques and a wider performance range Nanotec offers planetary gearboxes with an identical construction.<strong/>
Features
- High speed
- Longer life and higher accuracy
- Microdriver available
- Closed-loop and open-loop versions are available
Specifications
| Rated Output P (W): | 160 W |
| Rated Torque T (Nm): | 0.25 Nm |
| Flange (mm): | 42 mm |
| No-load speed (rpm): | 6000 rpm |
| Motor type: | Brushless DC Motor |
| IP Protection: | IP54 |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL4 - Motor controller for CANopen, Modbus RTU or USB
|
Technical Data
Dimensions
