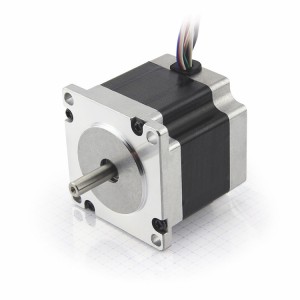

ST5918M 56MM Ball Linear Stepper-Nema23
High-torque stepper motor in size NEMA 23 (56 mm) with 1.8° step angle (full step). Standard size for installation in linear axes or small CNC machines. Available in four lengths and a variety of versions. An extensive range of customized shaft and cable versions as well as custom-made products can be found under Custom solutions.
Features
- This motor can be combined with a gearbox.
- The version with B shaft can also be ordered with an encoder (optional).
Specifications
| Size(mm): | 56 mm |
| Resolution (um): | 1.8 um |
| Rated Speed (RPM): | 600 rpm |
| Torque (Nm): | 1.24 Nm |
| Resolution (um): | 1.8 |
| Integrated Encoder: | No |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL4-E – Motor controller for CANopen, Modbus RTU or USB |
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| ST5918M1008-A 3D Model | stp | 491.812KB | December / 20 / 2019 | Download |
| ST5918M1008-A Data Sheet | 101.775KB | December / 20 / 2019 | Download | |
| ST5918M1008-B 3D Model | stp | 1.024MB | December / 20 / 2019 | Download |
| ST5918M1008-B Data Sheet | 116.574KB | December / 20 / 2019 | Download | |
| ST5918M2008-A 3D Model | stp | 314.697KB | December / 20 / 2019 | Download |
| ST5918M2008-A Data Sheet | 102.658KB | December / 20 / 2019 | Download | |
| ST5918M2008-B 3D Model | stp | 505.413KB | December / 20 / 2019 | Download |
| ST5918M2008-B Data Sheet | 114.5KB | December / 20 / 2019 | Download | |
| ST5918M3008-A 3D Model | stp | 484.957KB | December / 20 / 2019 | Download |
| ST5918M3008-A Data Sheet | 101.604KB | December / 20 / 2019 | Download | |
| ST5918M3008-B 3D Model | stp | 505.413KB | December / 20 / 2019 | Download |
| ST5918M3008-B Data Sheet | 113.735KB | December / 20 / 2019 | Download |
