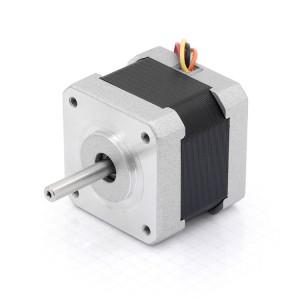

ST4118L 42MM Ball Linear Stepper-Nema17
High-torque stepper motor in size NEMA 17 (42 mm) with 1.8° step angle (full step) for a wide range of potential applications. Available in various lengths and versions. An extensive range of customized shaft and cable versions as well as custom-made products can be found under Custom solutions.
Features
- This motor can be combined with a gearbox.
- The version with B shaft can also be ordered with an encoder (optional).
Specifications
| Size(mm): | 42 mm |
| Resolution (um): | 1.8 um |
| Rated Speed (RPM): | 600 rpm |
| Torque (Nm): | 0.5 Nm |
| Resolution (um): | 1.8 |
| Integrated Encoder: | No |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL3-E – Motor controller for CANopen, Modbus RTU or USB |
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| ST4118L3004-A 3D Model | stp | 310.254KB | December / 19 / 2019 | Download |
| ST4118L3004-A Data Sheet | 89.69KB | December / 19 / 2019 | Download | |
| ST4118L3004-B 3D Model | stp | 292.938KB | December / 19 / 2019 | Download |
| ST4118L3004-B Data Sheet | 97.694KB | December / 19 / 2019 | Download |
