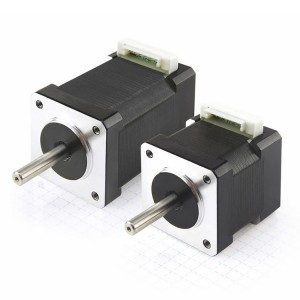

SC3518L 35MM Ball Linear Stepper-Nema14
High-torque stepper motor with integrated connector in size NEMA 14 (35 mm) with 1.8° step angle and a torque range between 0.18 and 0.32 Nm, depending on the motor length. The connector allows simple cable adaptation for customized applications. The two outer pins of the connector are connected to the motor housing. Together with the shielded cable, this creates a shield connection with excellent EMC performance. An extensive range of customized shaft and cable versions as well as custom-made products can be found under Custom solutions.
Features
- This motor can be combined with a gearbox.
- The version with B shaft can also be ordered with an NOE1 encoder (optional).
Specifications
| Size(mm): | 35 mm |
| Resolution (um): | 1.8 um |
| Rated Speed (RPM): | 600 rpm |
| Torque (Nm): | 0.32 Nm |
| Resolution (um): | 1.8 |
| Integrated Encoder: | No |
| Optional: | Encoder & Gearbox |
| Controllers / Drives Optional: |
CL3-E – Motor controller for CANopen, Modbus RTU or USB |
Dimensions
Torque Curves
Related Files
| File | Type | Size | Last update | Link |
|---|---|---|---|---|
| SC3518L1204-A 3D Model | stp | 445.152KB | December / 18 / 2019 | Download |
| SC3518L1204-A Data Sheet | 84.621KB | December / 18 / 2019 | Download | |
| SC3518L1204-B Data Sheet | 90.273KB | December / 18 / 2019 | Download | |
| SC3518L1204-B 3D Model | stp | 455.752KB | December / 18 / 2019 | Download |
